Mastering Tabular Data with TabTransformer: A Comprehensive Guide
In the realm of machine learning, tabular data is perhaps the most common and widely understood format, representing a significant portion of data used in business and research. However, despite its ubiquity, tabular data has often posed challenges for deep learning models, which excel in handling unstructured data like images and text. Enter TabTransformer, a novel architecture introduced by researchers at AWS in 2020, designed to revolutionize the way we approach tabular data in deep learning. This guide offers an end-to-end exploration of TabTransformer, from its conceptual underpinnings to practical application and implementation.
Introduction to Tabular Data Challenges
Tabular data, with its structured form of rows and columns, is a staple in data science, yet traditional deep learning models have struggled to capture the intricate relationships and categorical variables within it. The TabTransformer architecture, inspired by the success of transformers in NLP (Natural Language Processing), addresses these challenges head-on, leveraging the transformer’s ability to model relationships between data points, regardless of their position in the input.
What is TabTransformer?
The TabTransformer is a deep learning model that applies the transformer architecture to tabular data, particularly focusing on improving the representation of categorical features. Categorical features, which represent discrete values like country names or product categories, are abundant in tabular datasets but often require complex encoding techniques to be used effectively in machine learning models.
Core Concept
The core idea behind TabTransformer is to use a transformer’s self-attention mechanism to learn rich embeddings for categorical variables, enabling the model to capture complex patterns and relationships within the data. These embeddings are then used as input to a deep learning model, which can be trained for various tasks such as classification or regression.

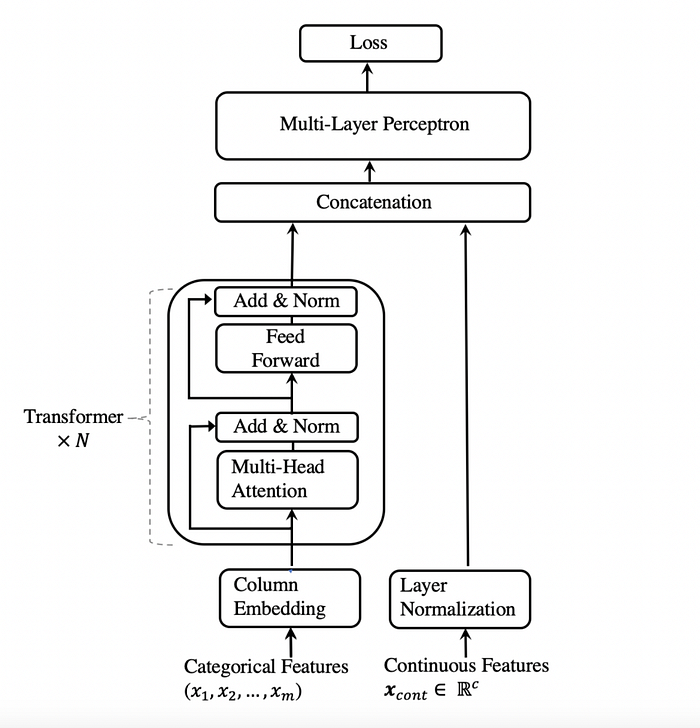

Architecture Overview
The architecture of TabTransformer can be broken down into several key components:
- Preprocessing: Categorical variables are first encoded using traditional methods (e.g., one-hot encoding) to prepare them for processing.
- Embedding Layer: The encoded categorical features are passed through an embedding layer, transforming them into dense vectors of fixed size. This step is crucial for capturing the semantic meaning of each category.
- Transformer Block: The heart of the TabTransformer is the transformer block, which applies self-attention to the embeddings. This process allows the model to learn how different categories relate to each other and to the target variable.
- Output Layer: Finally, the output from the transformer block is passed through a series of fully connected layers (or any other suitable architecture) to make predictions based on the learned representations.
Implementing TabTransformer
To implement TabTransformer, you’ll typically follow these steps:
- Data Preparation: Begin by encoding your categorical variables. While one-hot encoding is straightforward, consider more sophisticated methods like target encoding for better performance.
- Model Construction: Implement the transformer architecture. This involves defining the embedding layer, transformer blocks (comprising multi-head self-attention and position-wise feed-forward networks), and the output layers.
- Training: Train the TabTransformer model on your dataset. Pay attention to the choice of loss function and optimizer, as these can significantly impact performance.
- Evaluation: Evaluate the model’s performance using suitable metrics, such as accuracy for classification tasks or mean squared error for regression.
Practical Tips
- Batch Size: Transformer models are sensitive to batch size. Experiment with different sizes to find the optimal setting for your data.
- Regularization: To prevent overfitting, consider using dropout within the transformer blocks and regularization techniques during training.
- Learning Rate: The choice of learning rate and scheduler can greatly affect training dynamics. Learning rate warmup and decay strategies are often beneficial.
Applications and Use Cases
TabTransformer has shown promise across a range of applications where tabular data is prevalent, including:
- Customer Churn Prediction: By capturing complex customer behaviors and relationships, TabTransformer can improve churn prediction models.
- Fraud Detection: The ability to learn detailed representations of transactional data makes it valuable for detecting fraudulent activities.
- Healthcare: In predicting patient outcomes, the model can leverage historical health records and demographic information effectively.
Implementation of TabTransformers
For our example, we’ll use the “Wine Quality” dataset available from the UCI Machine Learning Repository. This dataset contains physicochemical properties and quality ratings of white and red wines. Our goal is to predict the quality of the wine based on its properties.
Note: While this dataset is commonly used for educational purposes, it’s important to consider more dynamic and complex datasets for real-world applications.
Step 1: Data Preparation
First, we need to download the dataset and prepare it for training.
import pandas as pd
import torch
import torch.nn as nn
import torch.optim as optim
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler
# Load the dataset
url = "http://archive.ics.uci.edu/ml/machine-learning-databases/wine-quality/winequality-red.csv"
data = pd.read_csv(url, sep=';')
# Splitting the dataset into features and target variable, adjust labels to be zero-indexed
X = data.drop('quality', axis=1)
y = data['quality'] - 3 # Adjusting labels to be zero-indexedStep 2: Preprocessing
TabTransformer requires categorical features to be encoded as embeddings. However, our dataset is primarily numerical, so we’ll focus on preprocessing these features for model input.
# Splitting the dataset into training and test sets
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=42)
# Standardizing the features
scaler = StandardScaler()
X_train_scaled = scaler.fit_transform(X_train)
X_test_scaled = scaler.transform(X_test)Step 3: Building the TabTransformer
We’ll use PyTorch to implement the TabTransformer. Note that for simplicity, this example might omit some implementation details.
# Define the TabTransformer model
class TabTransformer(nn.Module):
def __init__(self, num_features, num_classes, dim_embedding=64, num_heads=4, num_layers=4):
super(TabTransformer, self).__init__()
self.embedding = nn.Linear(num_features, dim_embedding)
encoder_layer = nn.TransformerEncoderLayer(d_model=dim_embedding, nhead=num_heads, batch_first=True)
self.transformer = nn.TransformerEncoder(encoder_layer, num_layers=num_layers)
self.classifier = nn.Linear(dim_embedding, num_classes)
def forward(self, x):
x = self.embedding(x)
x = x.unsqueeze(1) # Adding a sequence length dimension
x = self.transformer(x)
x = torch.mean(x, dim=1) # Pooling
x = self.classifier(x)
return xStep 4: Training the Model
Next, we’ll train our TabTransformer model on the prepared dataset.
# Initialize the model, loss, and optimizer
model = TabTransformer(num_features, num_classes).to(torch.device('cuda' if torch.cuda.is_available() else 'cpu'))
criterion = nn.CrossEntropyLoss()
optimizer = optim.Adam(model.parameters(), lr=0.001)
# Converting data to tensors
X_train_tensor = torch.FloatTensor(X_train_scaled)
y_train_tensor = torch.LongTensor(y_train.values)
# Training loop
for epoch in range(100):
optimizer.zero_grad()
output = model(X_train_tensor)
loss = criterion(output, y_train_tensor)
loss.backward()
optimizer.step()
if epoch % 10 == 0:
print(f'Epoch {epoch}, Loss: {loss.item()}')Step 5: Evaluation and Conclusion
Finally, evaluate the model’s performance on the test set and draw conclusions.
# Evaluation
model.eval()
X_test_tensor = torch.FloatTensor(X_test_scaled)
y_test_tensor = torch.LongTensor(y_test.values)
with torch.no_grad():
predictions = model(X_test_tensor)
_, predicted_classes = torch.max(predictions, 1)
accuracy = (predicted_classes == y_test_tensor).float().mean()
print(f'Test Accuracy: {accuracy.item()}')Final Thoughts
The TabTransformer provides a powerful framework for handling tabular data with complex feature interactions and high cardinality categorical features. While our example focused on a relatively simple and numerical dataset, the TabTransformer’s strength lies in its ability to process and learn from categorical features effectively. For real-world applications, consider applying TabTransformer to datasets with a mix of categorical and numerical features to fully leverage its capabilities.
Remember, the key to success with deep learning models, including TabTransformer, is thorough preprocessing, thoughtful model architecture design, and careful tuning of hyperparameters.
Full code
import pandas as pd
import torch
import torch.nn as nn
import torch.optim as optim
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler
# Define the TabTransformer model
class TabTransformer(nn.Module):
def __init__(self, num_features, num_classes, dim_embedding=64, num_heads=4, num_layers=4):
super(TabTransformer, self).__init__()
self.embedding = nn.Linear(num_features, dim_embedding)
encoder_layer = nn.TransformerEncoderLayer(d_model=dim_embedding, nhead=num_heads, batch_first=True)
self.transformer = nn.TransformerEncoder(encoder_layer, num_layers=num_layers)
self.classifier = nn.Linear(dim_embedding, num_classes)
def forward(self, x):
x = self.embedding(x)
x = x.unsqueeze(1) # Adding a sequence length dimension
x = self.transformer(x)
x = torch.mean(x, dim=1) # Pooling
x = self.classifier(x)
return x
# Load the dataset
url = "http://archive.ics.uci.edu/ml/machine-learning-databases/wine-quality/winequality-red.csv"
data = pd.read_csv(url, sep=';')
# Splitting the dataset into features and target variable, adjust labels to be zero-indexed
X = data.drop('quality', axis=1)
y = data['quality'] - 3 # Adjusting labels to be zero-indexed
# Splitting the dataset into training and test sets
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=42)
# Standardizing the features
scaler = StandardScaler()
X_train_scaled = scaler.fit_transform(X_train)
X_test_scaled = scaler.transform(X_test)
# Model parameters
num_features = X_train_scaled.shape[1]
num_classes = 6 # Adjusted based on unique labels
# Initialize the model, loss, and optimizer
model = TabTransformer(num_features, num_classes).to(torch.device('cuda' if torch.cuda.is_available() else 'cpu'))
criterion = nn.CrossEntropyLoss()
optimizer = optim.Adam(model.parameters(), lr=0.001)
# Converting data to tensors
X_train_tensor = torch.FloatTensor(X_train_scaled)
y_train_tensor = torch.LongTensor(y_train.values)
# Training loop
for epoch in range(100):
optimizer.zero_grad()
output = model(X_train_tensor)
loss = criterion(output, y_train_tensor)
loss.backward()
optimizer.step()
if epoch % 10 == 0:
print(f'Epoch {epoch}, Loss: {loss.item()}')
# Evaluation
model.eval()
X_test_tensor = torch.FloatTensor(X_test_scaled)
y_test_tensor = torch.LongTensor(y_test.values)
with torch.no_grad():
predictions = model(X_test_tensor)
_, predicted_classes = torch.max(predictions, 1)
accuracy = (predicted_classes == y_test_tensor).float().mean()
print(f'Test Accuracy: {accuracy.item()}')Conclusion
The TabTransformer represents a significant step forward in modeling tabular data, offering a powerful alternative to traditional machine learning techniques. By leveraging the strengths of the transformer architecture, it opens up new possibilities for deep learning applications in fields dominated by structured data. As with any model, the key to success lies in careful implementation, thoughtful hyperparameter tuning, and a deep understanding of the data at hand.
References
To experiment with TabTransformer, consider using existing libraries and frameworks that offer pre-built components, such as PyTorch and TensorFlow, to streamline the development process. With continuous advancements in machine learning and deep learning, the potential for TabTransformer and similar architectures in transforming tabular data analysis is immense.
